SEMBDNER landscape seeders
RS 60 N – RS 80 N – RS 100 N



SEMBDNER landscape seeders|RS 60 N – RS 80 N – RS 100 N

Equipment features:

  • Bearings are maintenance-free
  • Wind-protected seed spout
  • Height-adjustable guide spar
  • Rugged tool box with tools
  • Dead man's handle
  • Two individually foldable, spring-mounted scrapers on front and pressure roller
  • Powered seed dibbler with cleaning cage and rapid depth adjustment
  • Turn-off device with large, carried along seed collection container
Technical data RS 60 N RS 80 N RS 100 N
Working width 60 cm 80 cm 100 cm
Weight 190 kg 260 kg 310 kg
Seed container capacity approx. 54 litres 70 litres 90 litres
Honda GX 160 4 kW / 5.5 PS (5.42 bhp) 4 kW / 5.5 PS (5.42 bhp) 4 kW / 5.5 PS (5.42 bhp)
4-stroke petrol engine with auto low-oil shut down
Area capacity per hour approx. 1900 m² 2600 m² 3200 m²
L/W/H approx. (incl. guide spar) 1750 / 800 / 950 mm 1750 / 1000 / 950 mm 1750 / 1200 / 950 mm
Reversing gear with forward and reverse gear X X X
divided pressure roller (differential drive)   X X
with maintenance-free differential for very easy steering and turning

Extra equipment for landscape seeders
RS 60 N – RS 80 N – RS 100 N

Grid rollers
The landscape seeders are standard equipped with flat rollers. Optionally, they are also available as extra equipment in all working widths with grid front rollers and/or grid pressure rollers; they are mainly deployed for sandy, dry soils. The grid pressure rollers to RS 80 N and RS 100 N are also divided differential rollers with maintenance-free differential. All rollers are available as accessories for retro-fitting. The complete delivery includes bearings and drive components allowing the conversion to be carried out simply and quickly.

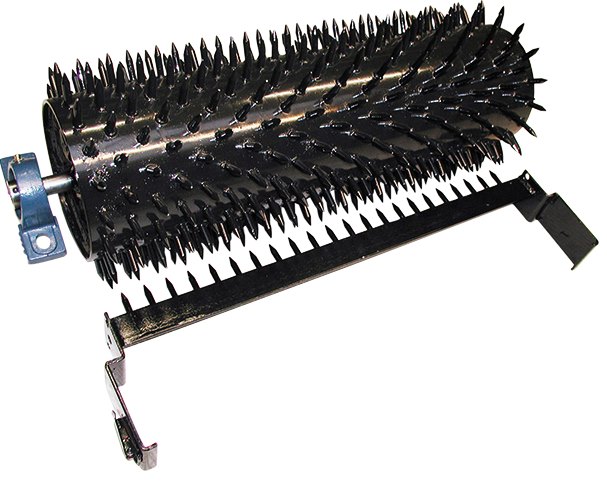

Overseeding device
The overseeding device is budget-priced auxiliary equipment for reseeding lawns in need of renovation. It consists of a perforating roller with scraping device and can be easily installed in the landscape seeders in place of the front roller. The perforating roller produces a 1.5 – 2.5 cm deep and even hole pattern with some 1500 punctures/m² into which the seed is placed. Seed dibblers and pressure rollers in the landscape seeder scour the edges of the holes and thus provide ideal germination conditions.

Canvas cover
Canvas covers of weatherproof plastic tarpaulin in solid car upholsterer quality are available to protect the landscape seeders

Four operations in one go
SEMBDNER landscape seeders enable perfect lawn sowing using the thousandfold proven sowing principle that was developed by us in consultation with customers. In combination with the handy, compact design and the almost legendary durability of our products, all this is the reason for the huge success of the SEMBDNER landscape seeders both at home and abroad.

Pre-rolling
The front roller crushes larger clods, so that the seed is not sown too deeply and will not be covered by too much soil.
Raking the seed into the surface
Thanks to its cleaning cage, the powered seed dibbler also works on stony, cloddy or damp ground and much more evenly than streaking rakes or harrows.
Sowing
Sowing takes place via a flexible Nylon brush that is insensitive to foreign matter. Adjustment accurately to the gram via scale – incl. calibrating device.
Rolling the lawn
The pressure roller consolidates soil surface and seeds completely evenly thus causing the seeds to germinate faster.

SEMBDNER landscape seeder
RS 50 H II hand-operated

The hand-pushed landscape seeder RS 50 H II for house gardens and allotments with all the well-known advantages of a genuine SEMBDNER landscape seeder

Equipment features:

  • grid front roller and flat pressure roller
  • detachable weight box
  • maintenance-free bearings
  • wind-protected seed spout
  • powered seed dibbler
  • seed rate control
  • easy to transport

  1. The seed dibbler drive is propelled via a chain and protected by a cover.
  2. A detachable, rugged weight box that can be filled with various minerals (sand, stones) is located above the flat pressure roller.
  3. Sowing takes place via Nylon brush. The adjusting lever serves infinitely variable opening of the bottom run-off plate.
  4. The seed dibbler is set to transport position by operating the bracket.
Technical data RS 50 H II
Working width 50 cm
Weight approx. from 60 – 120 kg
Seed container capacity approx. 40 litres
L/W/H approx. (incl. guide spar) 1270 / 590 / 940 mm

Four operations in one go
SEMBDNER landscape seeders enable perfect lawn sowing using the thousandfold proven sowing principle that was developed by us. In combination with the handy, compact design and the almost legendary durability of our products, this is the reason for the huge success of the SEMBDNER landscape seeders both at home and abroad.

Pre-rolling
The grid front roller crushes larger clods, therefore seed is not sown too deeply and will not be covered by too much soil. At the same time, the grid front roller serves as drive for the brush roller.
Raking the seed into the surface
Thanks to its cleaning cage, the powered seed dibbler also works on stony, cloddy or damp ground and much more evenly than streaking rakes or harrows.
Sowing
The seed sowing device in the seed container has a shaft with flexible, low-wearing Nylon brushes. They are insensitive to small foreign matter and are not prone to jamming as fixed versions would do. The seed-rate determination regulating lever is continuously adjustable.
Rolling the lawn
The pressure roller consolidates soil surface and seeds completely evenly thus causing the seeds to germinate evenly. Pressure roller surface pressure can be changed quickly and precisely depending on soil conditions.

SEMBDNER lawn aerator
VR 45 A and VR 60 B with front-wheel drive

Thatch above the soil as matted layer of roots, stems, flat-growing weeds and clippings is removed to aerate the lawn anew. Freeing the lawn from moss, clippings and flat-growing weeds regenerates the grasses to the effect that air, water and nutrients can penetrate the soil again. The layer of grass becomes healthier, more resilient and, thus, more beautiful.

Equipment features:

  • Front-wheel drive on the VR 60 B and VR 45 A for consistent, optimal work result and easy, comfortable operation even on hilly terrain
  • rugged steel structure for professional continuous use
  • large, wide pneumatic tyres as well as rear wheels running in individual bearings for turning on narrowest space
  • safety circuit for simultaneous switching off wheel drive and blade shaft
  • practice-oriented safety covers and ejection guard with movable rubber shield
  • on-off switching of front wheel and blade shaft drive on the guide spar
  • smoothly sliding, encapsulated and maintenance-free pull cable to operate the V-belt couplings
  • blade shaft drive via double V-belt
  • large-dimensioned, maintenance-free ball bearings on the blade shaft for the absorption of impacts and a long service life
  • optionally available with flail blade or slitting blade shaft; subsequent conversion or refitting possible at any time by simple, complete replacement

Flail blade shaft
Blade shafts available that are equipped with flail blades or slitting blades made from hardened spring steel.

Slitting blade shaft
The slitting blade shaft has replaceable blades. conversion or refitting is possible by way of simple, complete replacement.

Technical data VR 60 B VR 45 A
Front-wheel drive X X
Reduction gear unit 55:1 (for front-wheel drive) X X
Working width 60 cm 45 cm
Working depth in the soil up to 2.5 cm up to 2.5 cm
Weight 110 kg 90 kg
Honda engines 6.6 kW / 9 PS (8.88 bhp) kW / 5.5 PS (5.42 bhp)
4-stroke petrol engine with auto low-oil shut down
Area capacity per hour approx. 2,000 m² 1,500 m²
L/W/H approx. (incl. guide spar) 1360 / 800 / 990 mm 1360 / 650 / 990 mm
Sheet-steel housing 4 mm 4 mm
Pneumatic tyres 260 x 85 260 x 85

SEMBDNER small engine roller
KM 1 – KM 2

The SEMBDNER small engine rollers are ideally suited for all rolling operations to maintain and service tennis courts and sports facilities, such as tracks, hard courts and grass courts.

The SEMBDNER small engine rollers are based on longstanding experience in the production of engine-powered equipment. The handy design enables work on small areas too. Robust and rugged design guarantees a long and dependable service life.

KM 1
Economically-priced model equipped with one-piece roller shell.

KM 2
Equipped with two-piece roller shell and maintenance-free differential. Facilitates an even easier and more space-saving roller movement - rolling is also possible in a circle, not only back and forth.

Equipment features:

  • technically mature and dependable technology
  • rugged and compact design
  • smooth-running 4-stroke engine with low-oil shut down; Honda model with comprehensive service network
  • robust reversing gear with forward and backward travel direction with start-up clutch for soft starting and reversing
  • completely turned roller shell made from 10 mm thick steel
  • resilient, self-aligning scraper on the main roller
  • wide following roller as counterbalance and support
  • no disturbing roller tracks and indentations due to rounded edges
  • easy to handle and ideal weight distribution ensure high standards of operating comfort
  • roller-chain drive with practical chain adjusting device
  • dead man's handle for your safety (dead man's control)
  • weight increase possible by roller fill with water or minerals
  • delivery ready for use including tools in robust tool box

Forward/backward shift console
with automatic reduced throttle. Shift from forward to backward cannot take place at full throttle, therefore increased safety also for inexperienced operators.

Technical data KM 1 KM 2
Roller width 80 cm 80 cm
Roller diameter 50 cm 50 cm
L/W/H approx. 1520 / 930 /1050 mm 1520 / 930 / 1050 mm
Honda engine GX 160 4 kW / 5.5 PS (5.42 bhp) 4 kW / 5.5 PS (5.42 bhp)
4-stroke petrol engine with auto low-oil shut down
Speed up to 4.5 km/h up to 4.5 km/h
divided roller (differential)   X
with maintenance-free differential for very easy steering and turning
Area capacity per hour approx. 3,500 m² 3,500 m²
Operative weight – without water ballasting 275 kg 315 kg
Operative weight – with water ballasting 395 kg 415 kg
linear roller pressure – without water ballasting 3.5 kg/cm 4.0 kg/cm
linear roller pressure – with water ballasting 5.0 kg/cm 5.2 kg/cm

SEMBDNER manual roller
HR 60

The completely steel-made SEMBDNER manual roller HR 60 is delivered in very sturdy design.

Equipment features:

  • Thanks to its universal adapter, the guide spar can be used for all other roller types of different diameters.
  • Sturdy all-steel design
  • Rounded roller edges
  • Weight increase with water and minerals
  • Two resilient, self-adjusting scrapers
  • Softex handles
  • Maintenance-free ball bearings
Technical data HR 60
Flat roller diameter 46 cm
Working width 60 cm
Dead weight 57 kg
Filling weight up to 155 kg
Grid roller diameter 35 cm
Working width 60 cm
Weight 22 kg
Seed dibbler diameter 18 cm
Working width 60 cm
Weight 35 kg
